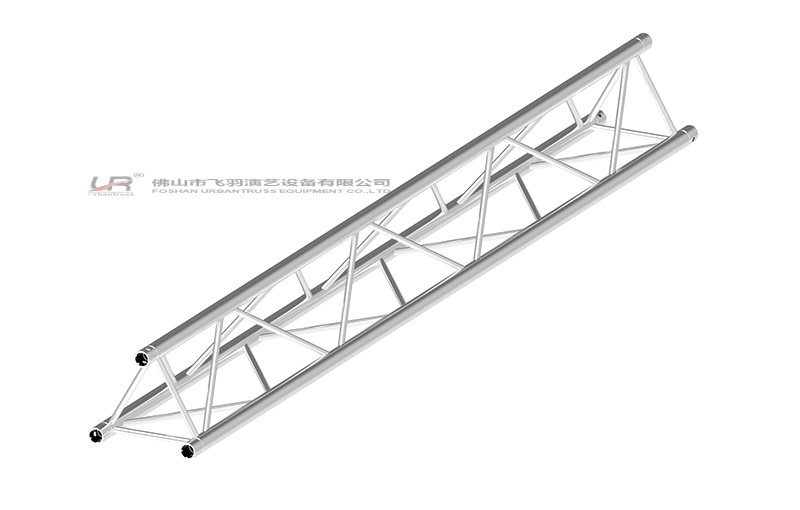

This is one of samll size truss,6082-T6 Aluminum material,with the advantage of beautiful appearance,samll volume but with stronger load capacity,lighter self-weight. Used for some samll performances,exhibitions etc.We provide three difference connection option:Conical,screw and hinge truss.Other irregular shapes can be ordered according to the customers requiremen.

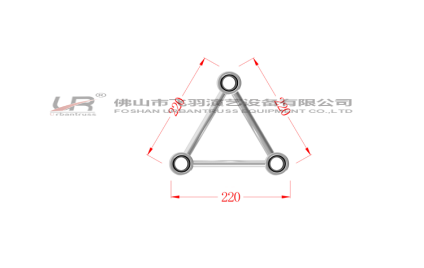

| Model | Description | Sizes | Length/mm | Weight/kg | ||||||||||||
| UR-TSC220-500 |
Material：6082-T6 Main Tubes：20*2.0mm Horizontal tubes：12*1.5mm Braces：12*1.5mm | 220*220 | 500 | 1.2 | ||||||||||||
| UR-TSC220-1000 | 220*220 | 1000 | 2 | |||||||||||||
| UR-TSC220-1500 | 220*220 | 1500 | 3 | |||||||||||||
| UR-TSC220-2000 | 220*220 | 2000 | 4 | |||||||||||||
| UR-TSC220-2500 | 220*220 | 2500 | 5 | |||||||||||||
| UR-TSC220-3000 | 220*220 | 3000 | 6 | |||||||||||||
