Home  > Products  > Conical Truss > 400X400

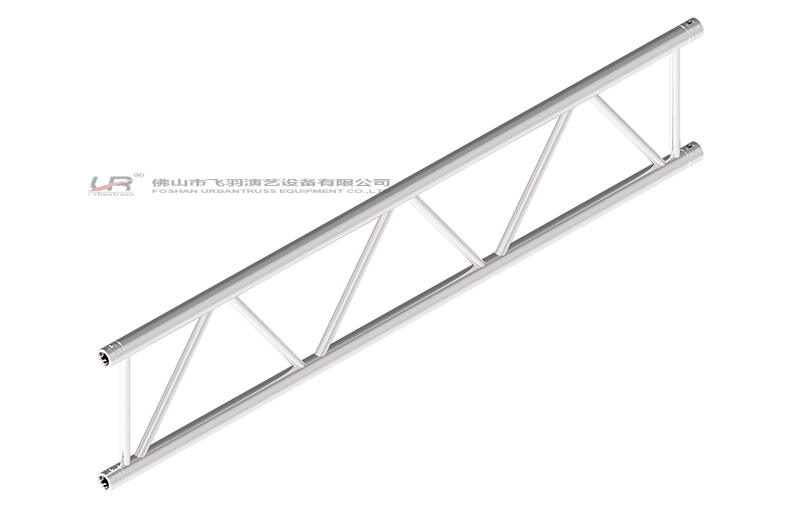

Flat Truss UR-FSC400

Flat Truss UR-FSC400
  • Flat Truss UR-FSC400
  • Flat Truss UR-FSC400
  • This is one of Medium size truss,6082-T6 Aluminum material,with the advantage of beautiful appearance,samll volume but with stronger load capacity,lighter self-weight. Used for some samll performances,exhibitions etc.We provide three difference connection option:Conical,screw and hinge truss.Other irregular shapes can be ordered according to the customers requiremen.


    Model Description Sizes Length/mm Weight/kg
    UR-FSC400-500 Material:6082-T6

    Main Tubes:50*3.0mm

    Horizontal tubes:25*2.0mm

    Braces:25*2.0mm

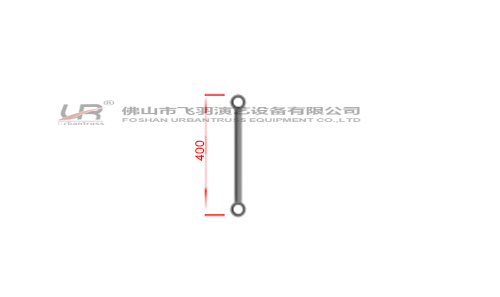

    400 500 2.6
    UR-FSC400-1000 400 1000 4.1
    UR-FSC400-1500 400 1500 5.63
    UR-FSC400-2000 400 2000 7.31
    UR-FSC400-2500 400 2500 8.9
    UR-FSC400-3000 400 3000 10.5
