400X400

Home  > Products  > Conical Truss > 400X400

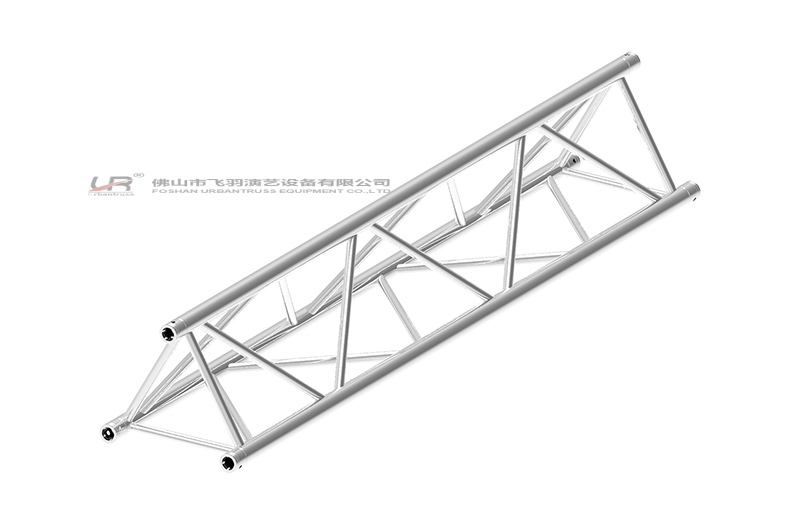

Triangles Truss UR-TSC400

Triangles Truss UR-TSC400
  • Triangles Truss UR-TSC400
  • Triangles Truss UR-TSC400
  • This is one of Medium size truss,6082-T6 Aluminum material,with the advantage of beautiful appearance,samll volume but with stronger load capacity,lighter self-weight. Used for some samll performances,exhibitions etc.We provide three difference connection option:Conical,screw and hinge truss.Other irregular shapes can be ordered according to the customers requiremen.



    Model Description Sizes Length/mm Weight/kg
    UR-TSC400-500 Material:6082-T6

    Main Tubes:50*3.0mm

    Horizontal tubes:25*2.0mm

    Braces:25*2.0mm

    Spacer50*80mm

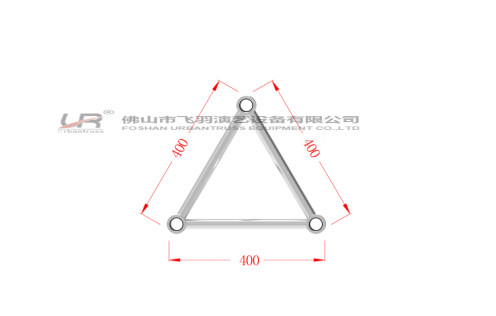

    400*400 500 4.54
    UR-TSC400-1000 400*400 1000 7.5
    UR-TSC400-1500 400*400 1500 9.4
    UR-TSC400-2000 400*400 2000 13.63
    UR-TSC400-2500 400*400 2500 16.5
    UR-TSC400-3000 400*400 3000 17.54
