400X400

Home  > Products  > Conical Truss > 400X400

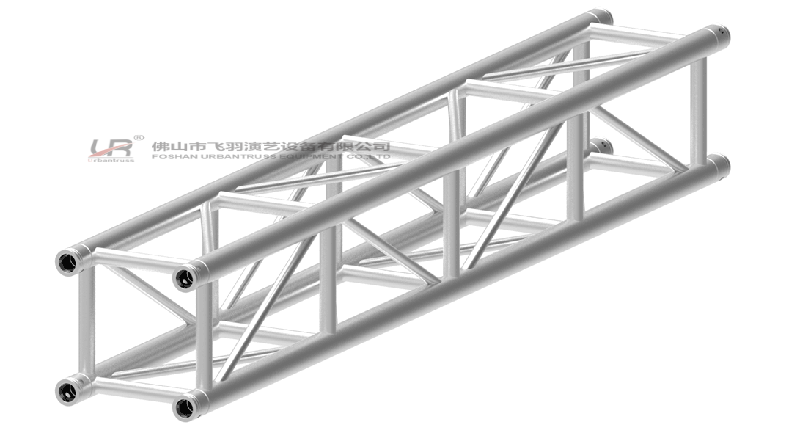

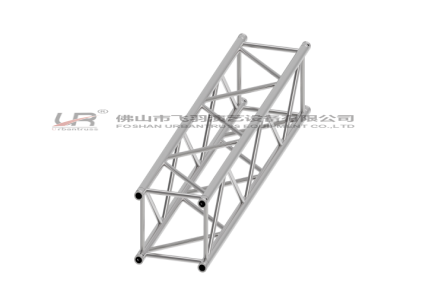

Square Truss UR-QDC400

Square Truss UR-QDC400
  • Square Truss UR-QDC400
  • Square Truss UR-QDC400
  • Square Truss UR-QDC400
  • Square Truss UR-QDC400
  • This is one of Medium size truss,6082-T6 Aluminum material,with the advantage of beautiful appearance,samll volume but with stronger load capacity,lighter self-weight. Used for some samll performances,exhibitions etc.We provide three difference connection option:Conical,screw and hinge truss.Other irregular shapes can be ordered according to the customers requiremen.



    Model Description Sizes Length/mm Weight/kg
    UR-QDC400-500 Material:6082-T6

    Main Tube:50*3.0mm

    Brace:30*2.0mm

    Diagonal:30*2.0mm

    Spacer:50*80mm

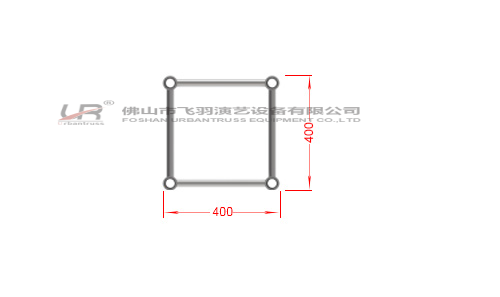

    400*400 500 6.4
    UR-QDC400-1000 400*400 1000 10.9
    UR-QDC400-1500 400*400 1500 15.6
    UR-QDC400-2000 400*400 2000 19
    UR-QDC400-2500 400*400 2500 24
    UR-QDC400-3000 400*400 3000 28
