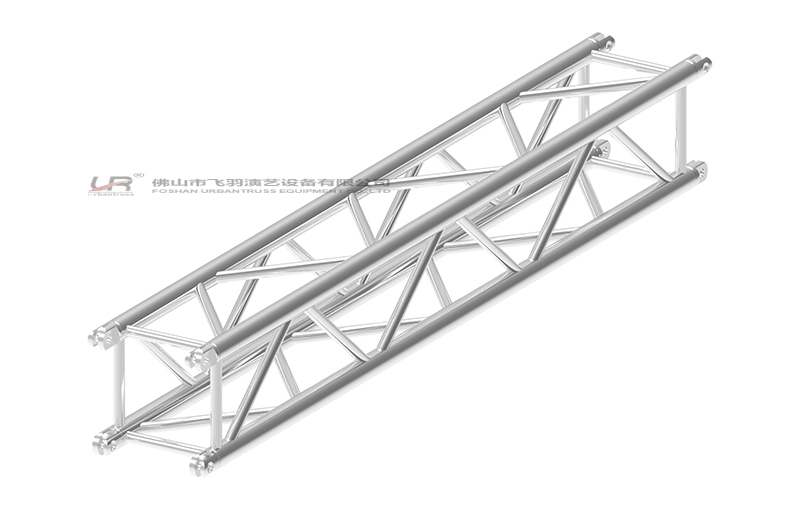

This is one of samll size Male/female coupler truss,6082-T6 Aluminum material,with the advantage of beautiful appearance,samll volume but with stronger load capacity,lighter self-weight. Used for some samll performances,exhibitions etc.We provide three difference connection option:Conical,screw and Male/female coupler truss.Other irregular shapes can be ordered according to the customers requiremen.
| Model | Description | Sizes | Length/mm | |||||||||||||
| UR-QSF290-500 |

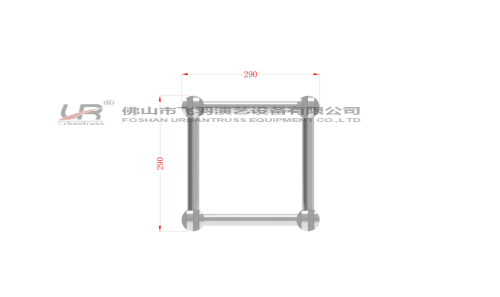

Material：6082-T6 Main Tubes：50*3.0mm Horizontal tubes：25*2.0mm Braces：25*2.0mm Fork Connection:50*100mm | 290*290 | 500 | |||||||||||||
| UR-QSF290-1000 | 290*290 | 1000 | ||||||||||||||
| UR-QSF290-1500 | 290*290 | 1500 | ||||||||||||||
| UR-QSF290-2000 | 290*290 | 2000 | ||||||||||||||
| UR-QSF290-2500 | 290*290 | 2500 | ||||||||||||||
| UR-QSF290-3000 | 290*290 | 3000 | ||||||||||||||
