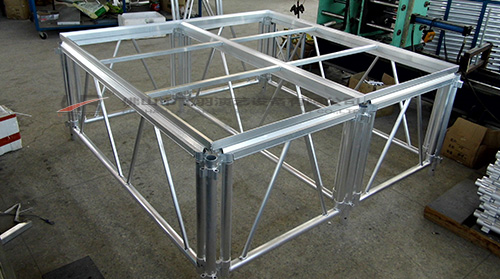

Aluminum alloy moving stage, this stage by stage surface, long &short flat truss ,standard, stage lifting tube, adjustable base combination, each stage and the adjacent column and monolithic stage is shared, After the connection, the stage into a whole, very strong .Conveniently, widely used stage performance.

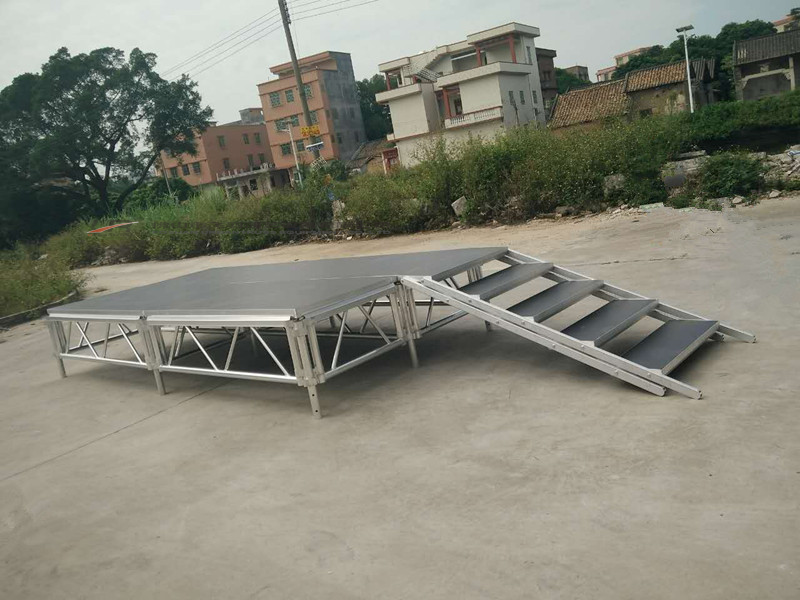

Stage specifications can be customized according to customer needs to be equipped with stage rails, stairs and other stage configuration,Adjustable height 0.8-1.2m 0.4-0.8m. table selection: transparent PVC plate toughened glass plate. plate thickness: 18mm. Aluminum Alloy stage stair materials with stage materials are the same, the stairs of the ladder to be decided according to the stage height. Can also be customized according to customer demand
| Model | Description | Sizes | High/m | |||||||||||||
| Stage-1-1 | Main Tubes：50*3.0mm Non slip board thickness：18mm Tempered glass thickness：18mm Loading:750kg/m (CAN BE CUSTOMIZED) | 1m*1m | 0.6m-1m/0.8m-1.4m/1m-1.8m | |||||||||||||
| Stage-1-2 | 1m*2m | 0.6m-1m/0.8m-1.4m/1m-1.8m | ||||||||||||||
| Stage-1-122 | 1.22m*1.22m | 0.6m-1m/0.8m-1.4m/1m-1.8m | ||||||||||||||
| Stage-1-244 | 1.22m*2.44m | 0.6m-1m/0.8m-1.4m/1m-1.8m | ||||||||||||||
